Product main uses
It is suitable for separating solid-containing suspensions with a particle size greater than 0.005mm and a concentration of 2-40%.Widely used in chemical industry, light industry, pharmaceutical, food, environmental protection and other industries.For example: oxalic acid, alum, aluminum hydroxide, ammonium bicarbonate, ammonium chloride, ammonium nitrate, ammonium sulfate, anthracene, antibiotics, barium chloride, barium carbonate, barium sulfate, benzene, benzoic acid, blood products, blue vitriol, borax , boric acid, distiller's grains, calcium carbonate, calcium citrate, calcium hydroxide, calcium nitrate, calcium oxalate, casein, cellulose, chrome yellow, clay, methylcellulose, coal flotation waste, corundum, cotton lint, corn Germ, edible oil, fish processing, Glauber's salt, glutamic acid, hops, pesticides, diatomaceous earth, herbicides, tartaric acid, sodium sulfate, carbon black, etc.

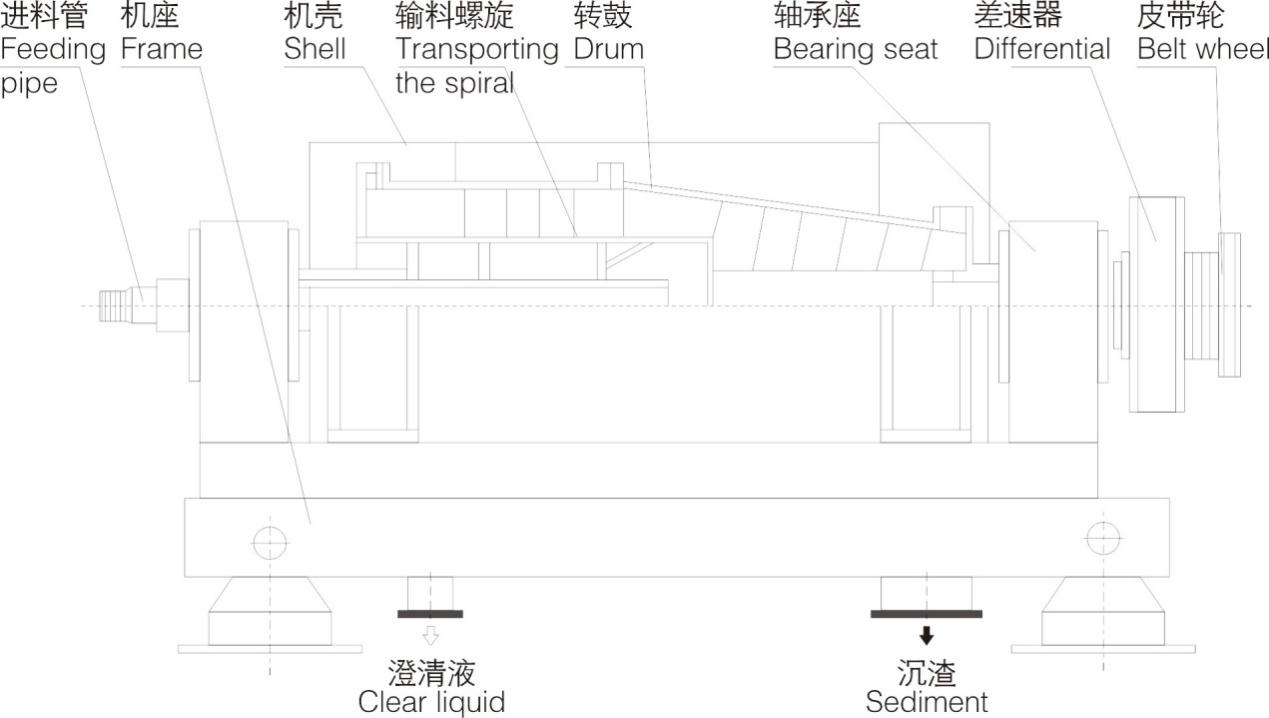

Centrifuge structure
main feature

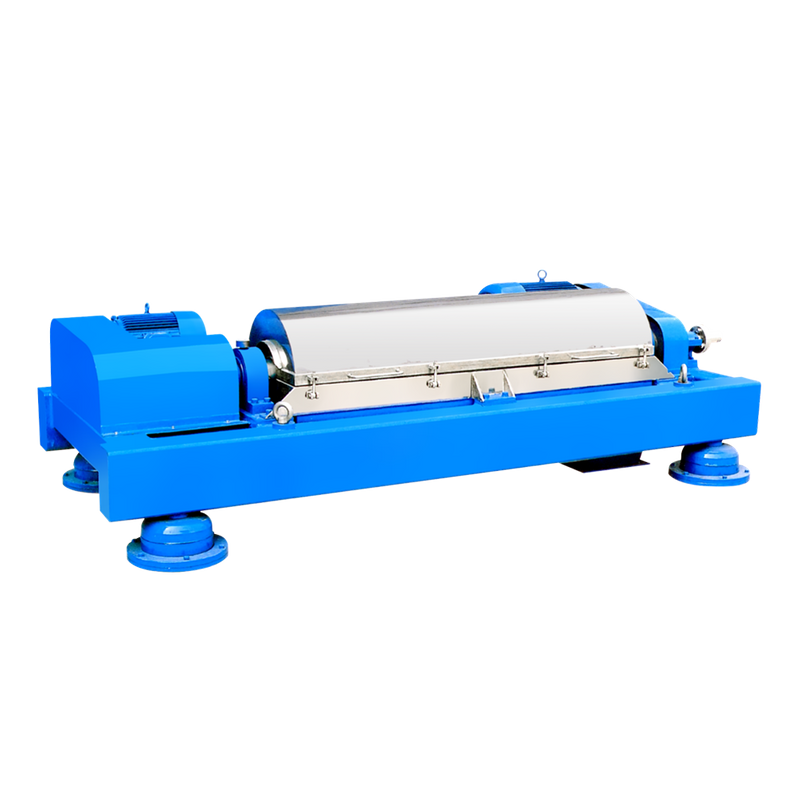

LW type centrifuge is a horizontal spiral discharge and continuous operation settling equipment.The drum and screw rotate at high speed with a certain speed difference.Materials are continuously introduced into the screw pusher from the feed pipe.After accelerating, they enter the bowl.Under the action of centrifugal force, heavier liquids or solids will be deposited on the drum wall.The screw pusher continuously pushes the deposited liquid or solid to the cone end of the drum and discharges it out of the machine through the slag discharge port.The lighter liquid continuously overflows from the overflow port at the big end of the drum and is discharged out of the machine through the drain port.The centrifuge can continuously perform feeding, separation, washing, unloading and other tasks when running at full speed.It has the characteristics of compact structure, continuous operation, stable operation, strong adaptability, high production capacity, and easy maintenance. It is suitable for the separation of solid-containing suspensions with a particle size of 0.005mm and a concentration of 2-40%.Widely used in chemical industry, light industry, pharmaceutical, food, environmental protection and other industries.
Ordering instructions
Material: Parts in contact with materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.
Driving mode: electromagnetic speed regulating motor drive, ordinary motor or explosion-proof motor variable frequency drive, etc.
Differential speed selection range: 10-60r/min
Aspect ratio selection range: 2-4.4
Number of screws: single head or double head
It can be designed and manufactured according to GMP standards.
Note: 1. The actual production capacity is related to the material properties and separation requirements.

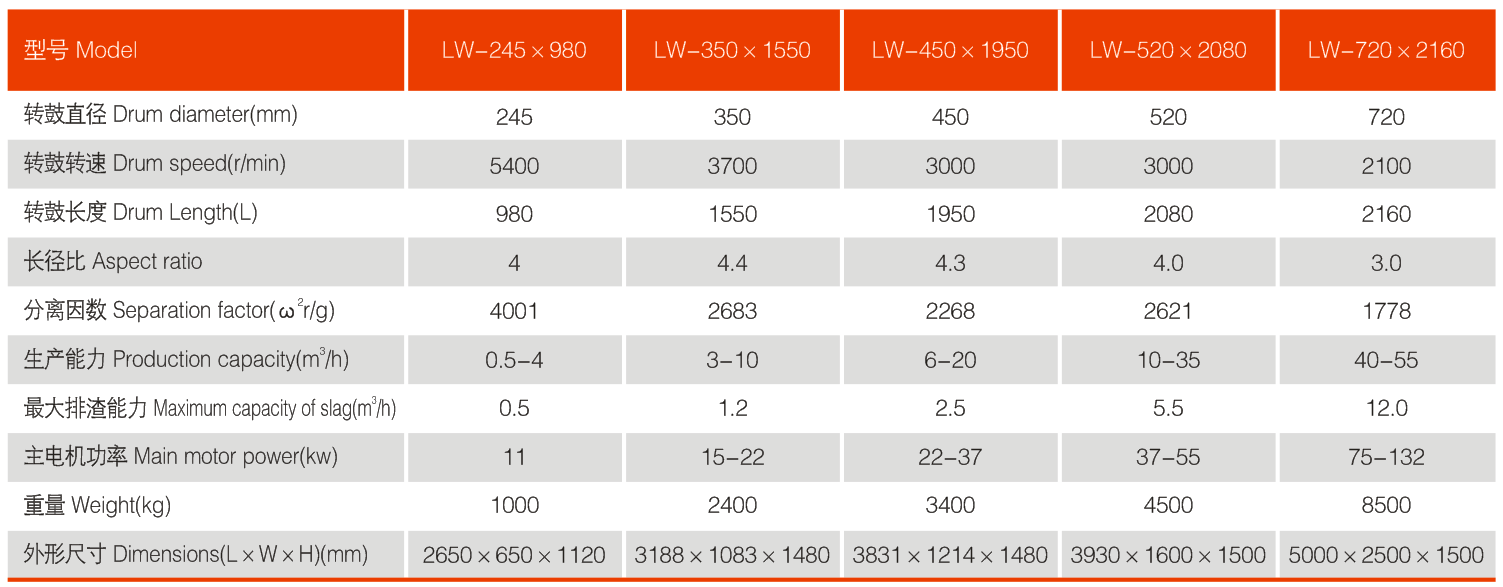

2. The maximum slag discharge capacity in the table is calculated based on △n=10r/min under bidirectional extrusion.
3. The feed concentration range for sludge dehydration is 0.5-4%.
4. The specific technical parameters are subject to the instruction manual.
