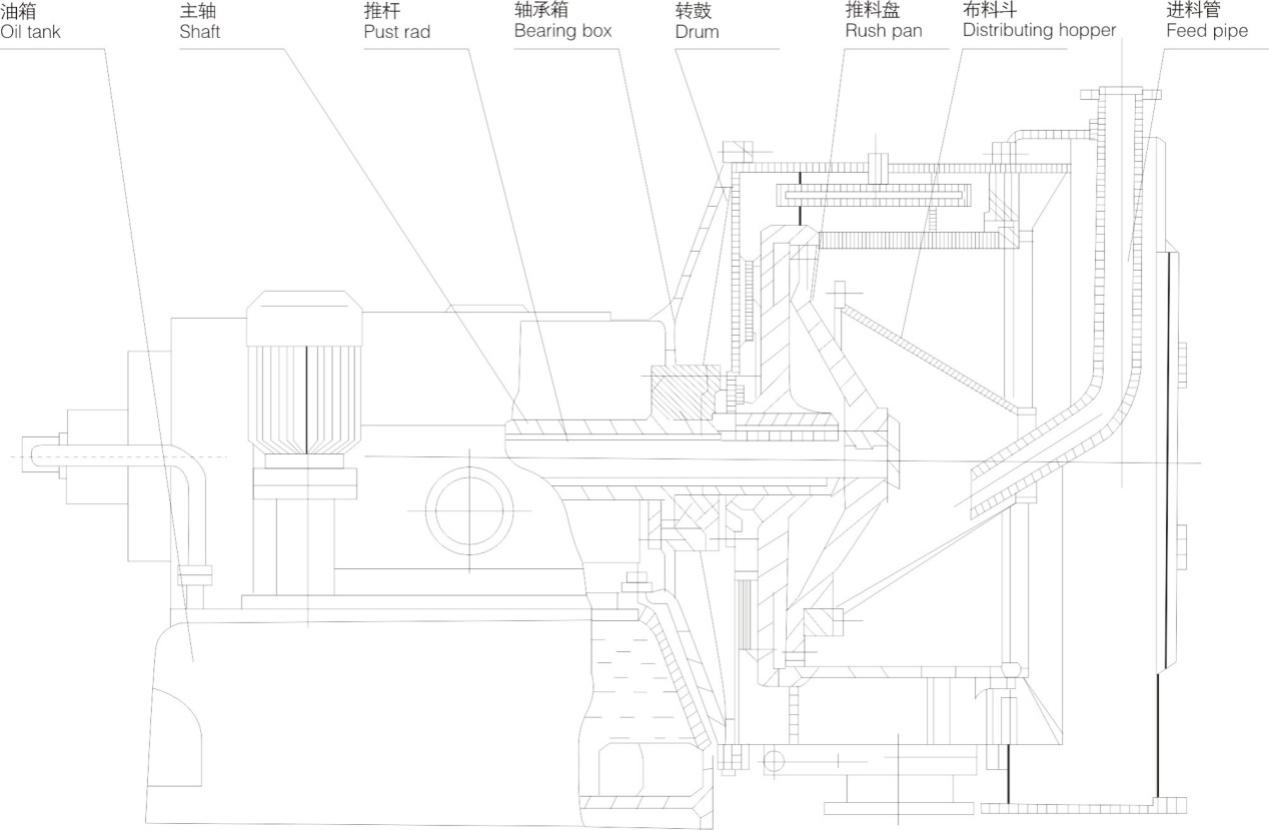

Product structure principle
The main motor drives the drum to rotate at full speed.Materials are continuously introduced from the feeding pipe and evenly spread on the filter wall inside the drum.Under the action of centrifugal force, the liquid passes through the filter screen and the filter hole of the drum, and then is discharged from the drain pipe on the casing.The solids remain in the drum and form a round filter cake.When rotating at the same speed as the push plate, the drum continues to make axial reciprocating motions driven by the piston.The filter cake is pushed out of the drum and discharged from the bottom of the casing.
Product features and uses

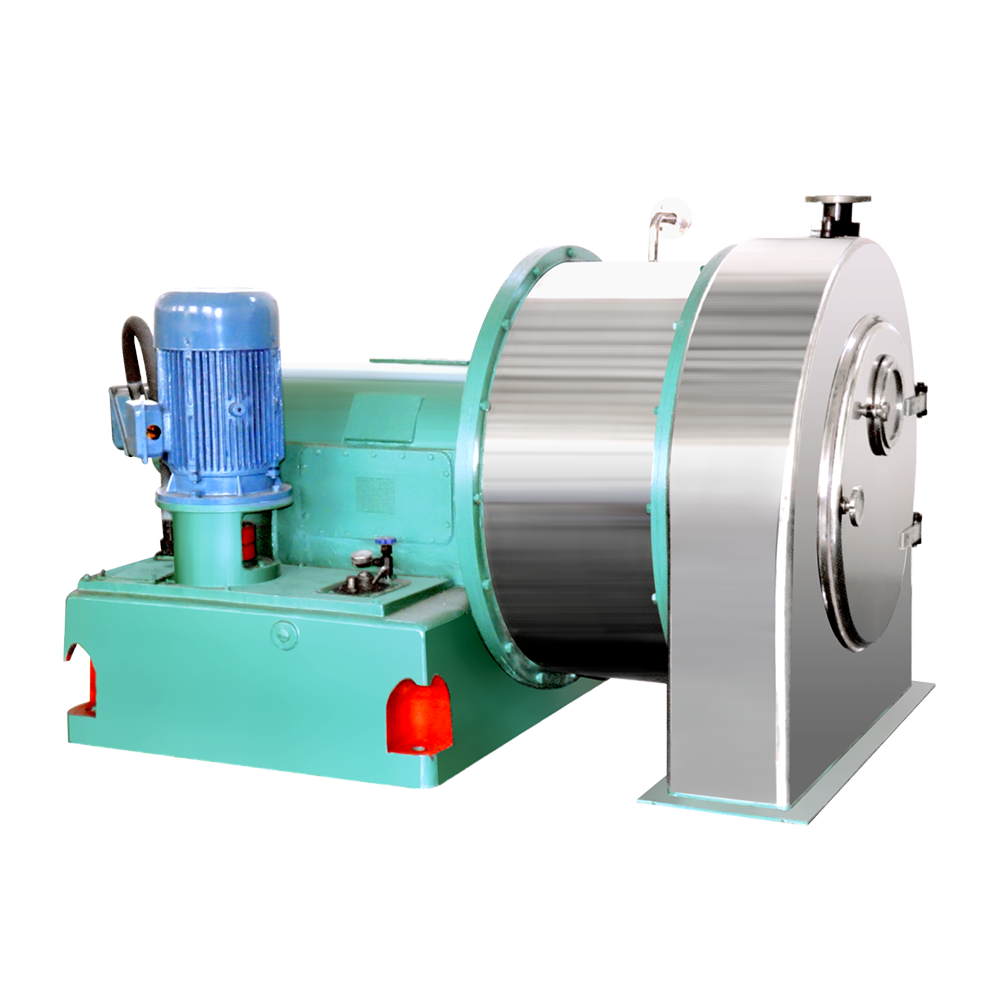

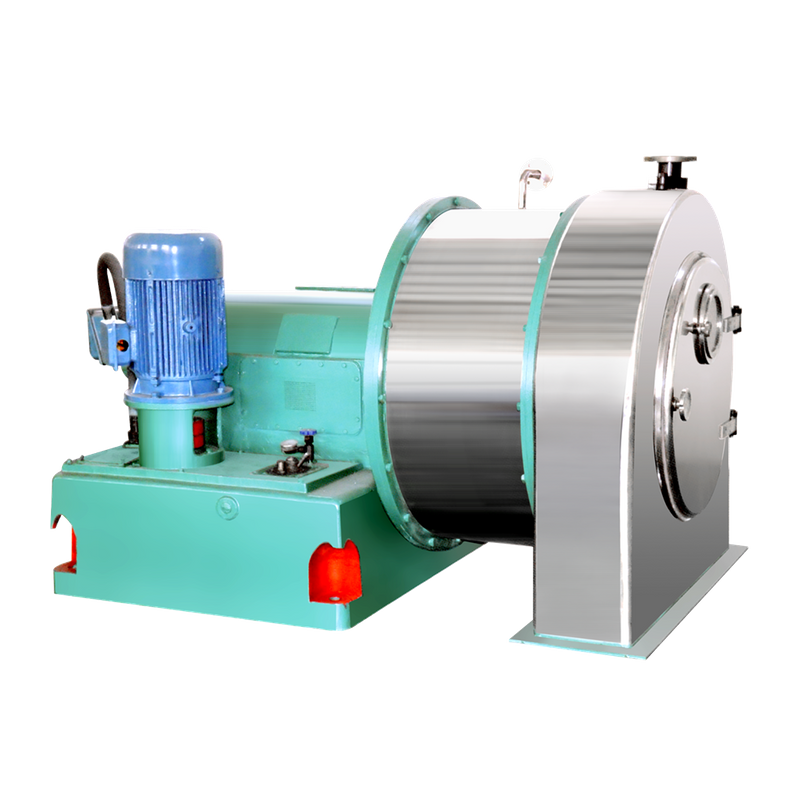

HY series centrifuge is a filter centrifuge with horizontal piston pushing and continuous operation.The centrifuge can continuously perform feeding, separation, washing, unloading and other tasks when running at full speed.It has the characteristics of continuous operation, stable operation, easy operation, high production capacity, good washing effect, and low moisture content of the filter cake. It is suitable for the separation of solid-containing suspensions with a particle size greater than 0.1mm and a concentration greater than 40%..It is widely used in chemical industry, fertilizer, alkali production, salt production and other industries, and is especially suitable for solid-liquid separation of ammonium bicarbonate, ammonium chloride, mirabilite, cottonseed pickling, etc.
notes

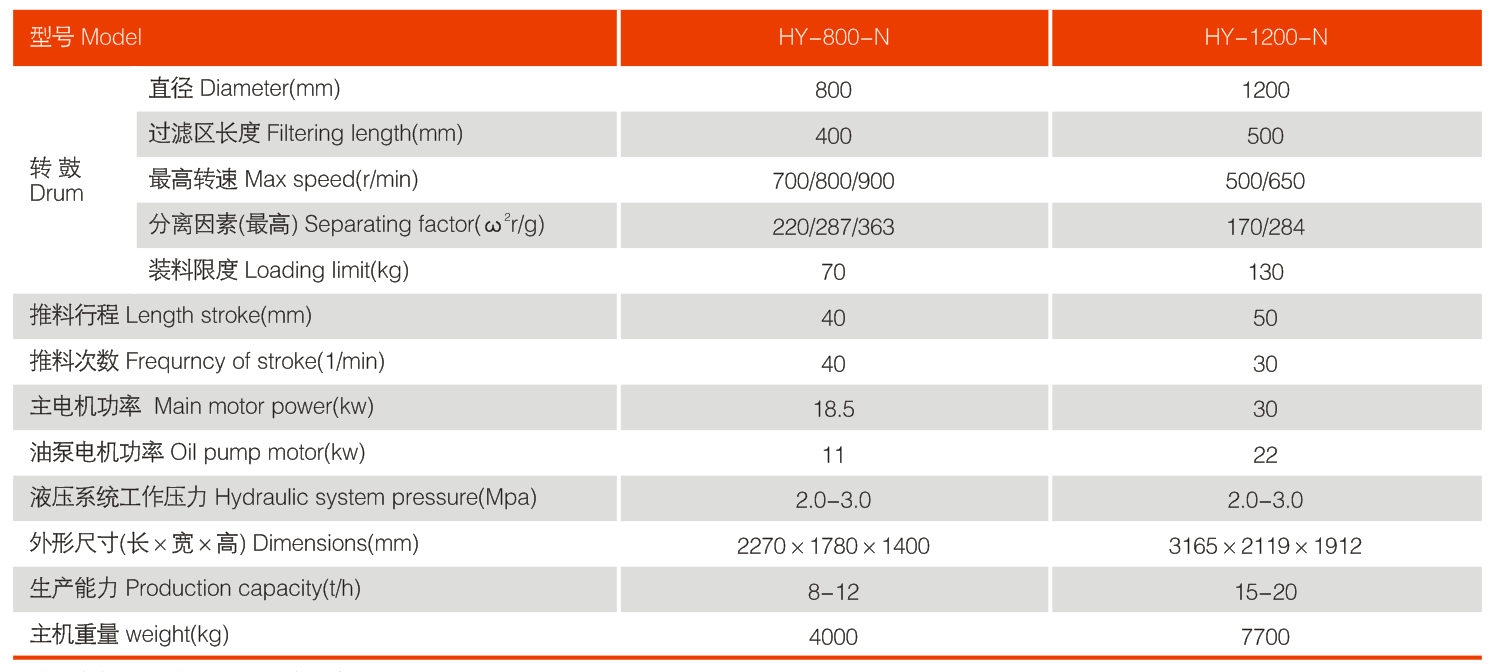

■Technical parameters are subject to the product manual.
■When consulting, customers should clarify material characteristics, parameters, usage conditions and other requirements.
■We can adopt personalized design and manufacturing according to the special requirements of customers.
Material: Parts in contact with materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.
Motor type: ordinary or explosion-proof single-speed motor, etc.
Filter spacing width selection range: 0.1-0.4mm
It can be designed and manufactured according to GMP standards.
Other technical requirements are negotiable.
