main feature
■The frequency converter starts smoothly and the separation factor is adjustable.
■Hang bag unloading, low labor intensity and high work efficiency
■Reasonable structural design effectively eliminates sanitary dead corners.Structural parts adopt smooth transitions and have polished surfaces.External structural parts, fasteners, and bowl are all made of stainless steel.The housing features a flip-top lid, allowing the space between the housing and bowl to be thoroughly cleaned.
■ Equipped with a spray cleaning system to perform CIP cleaning on the centrifuge, including cleaning the inner wall of the casing, the inner and outer surfaces of the drum, the surface of the liquid collector, and other invisible parts inside the centrifuge.Meet the requirements of GMP standards.
■Simple structure and easy operation.
■Particles are not easily broken.
■Equipped with a nitrogen protection system to ensure that the inner cavity of the centrifuge is isolated from the outside air.
■Good versatility and wide range of applications.
■Closed structure.The seals are made of silicone rubber or fluorine rubber to meet sealing and explosion-proof requirements.Suitable for toxic, flammable and explosive occasions.
1. Shock absorber
2. Framework
3. Shell
4. Bowl part
5. Bearing seat
6. Cover
7. Strabiscope
8. Explosion-proof lights
9. Flush pipe
10. Feed pipeline
11. Turning device
12. Motor
13.Drain pipe

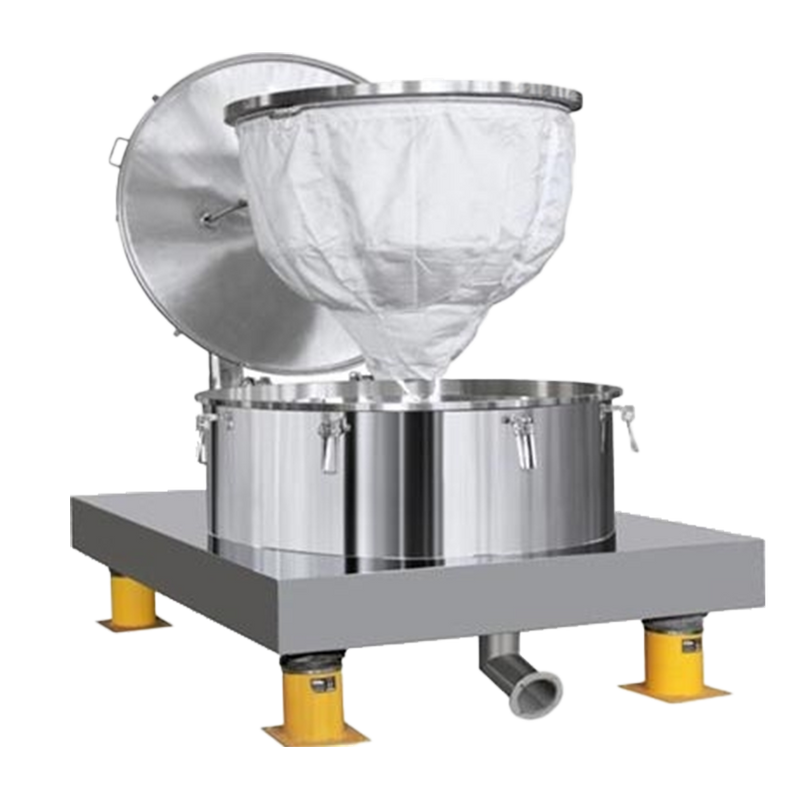

Schematic diagram of hanging bag unloading
